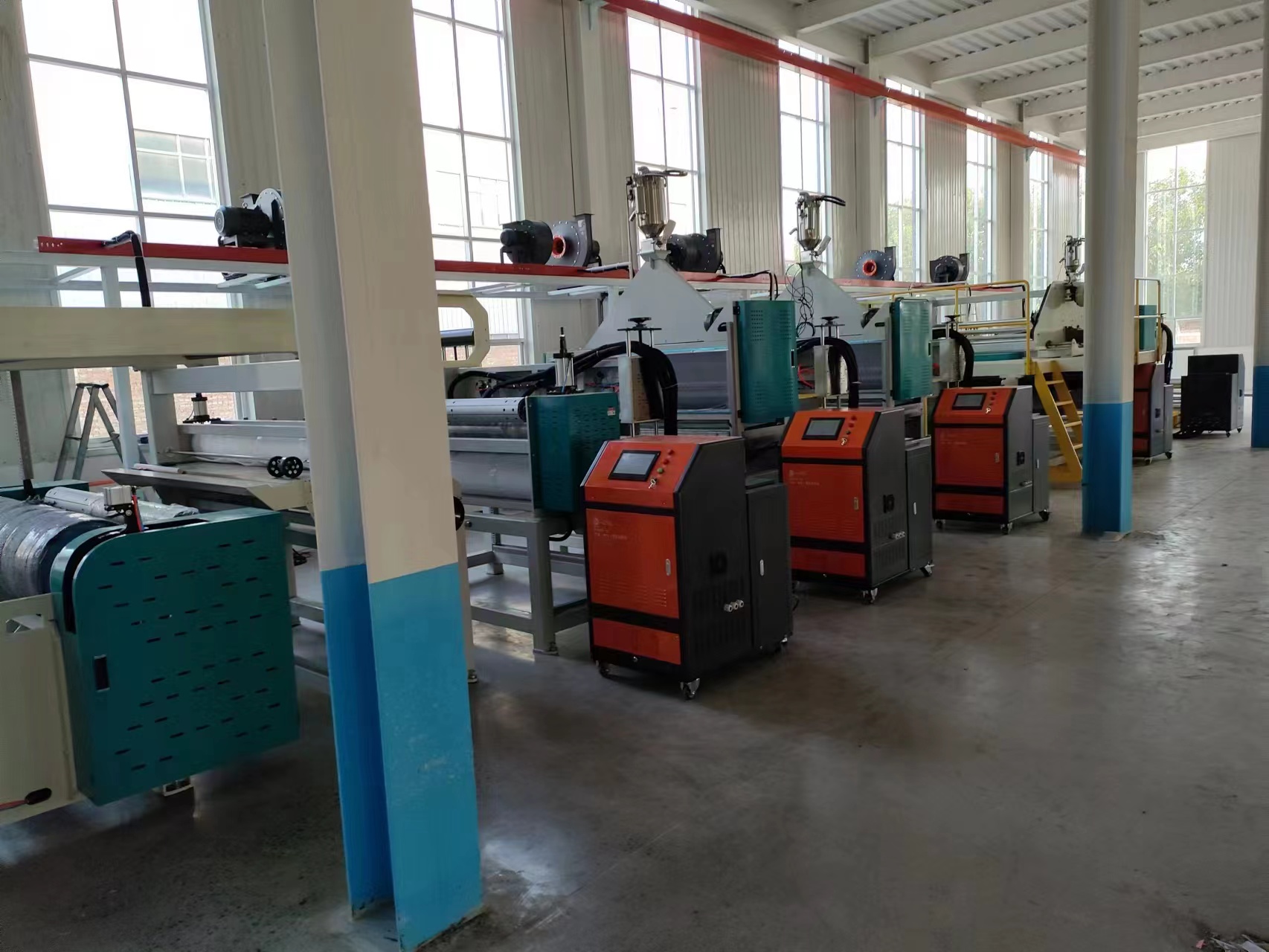

XD-TB1800mm Carbon Filter Material Composite Machine

Rui'an Jundingda Machinery Co.,Ltd, registered in 2011is a technical enterprise specializing in the researchdevelopmentand production of hot melt adhesive spraying and laminating equipment.After years of practicethe hot melt adhesive machine products of Jundingda Company are widely used in the following (medical protectionhousehold appliancesautomobiles,hot melt adhesive coating, packaging,nonwoven material compositesanitary products,filters, air purifiers and other fresh air systems.Thecompanys main products are melt blown filter material composite machinescarbon cloth composite machines hot melt adhesive coating machineshot melt adhesive machines,foaming hot melt adhesive machinesHot melt glue gun(long-term availability of various capacity glue machines XD-Z1LXD-Z15LXD Z30L.XD-Z50LXD-Z100L.XD-Z150LXD-Z300L for evervone to choose from) combined with various hot melt glue guns(single head thread gunglue dispensing gun,fiber spray gunreverse suction gluegunadjustable scraper gun, various non-standard glue making guns to meet different glue supply requirements.With the continuoustighteningofenvironmental protection, hot melt adhesives have unique environmental characteristics.According to market demand Jundingda Company has launched a series of hot melt adhesive machines that meet the matching requirements for air purification equipment, and they are used together with most domesticenterprises According to the needs of customers and the marketin 2014 we began to develop and produce products such as fully automatic melt blown laminating machines, fully automatic carbon cloth laminating machines hot melt adhesive coating laminating machinesfilter rear end glueinjectionbinding and so on.In 2021the first domestic foaming hot melt adhesive machine was being developedand it was officially launched on the market in 2022. It has received the support and recognition of manycustomersThe company adheres to the purpose of exploring the market with technologyand developing the market with quality. Constantly innovate and learnProvide customers with high-level,high-quality equipment Bring greater product value experience to customers.Thank you for your long-term trustsupport and cooperation in Jundingda products.

1,Electrical control is controlled by Siemens PLC (1 only), the main touch screen 10 inches, vice touch screen 7 inches total two;

The working principle of this machine:

This machine is a collection of 2 times carbon spreading 4 times glue spraying composite device in one, each mechanism by independent adjustable. The material is put into the roll, after correcting the deviation, it enters into the No.1 spraying system to spray the glue, No.1 spreading carbon (make the carbon powder adhering to the material), 2 times spraying glue and the material composite, 3 times spraying glue, 2 times spreading carbon, 4 times spraying glue and the upper layer of the material composite, flat pressure, slitting, and enter into the friction work station to collect the rolls.
1: production speed and spray glue volume synchronous control
2: Unwinding tension is automatically adjusted with the production speed, or can be manually adjusted independently.
3: The upper and lower materials adopt photoelectric servo deviation correction system. Ensure that the material is neat and beautiful
4: The winding system adopts friction magnetic powder tension winding. Ensure that the product diameter and size of the tension is uniform.
5: The machine has a set metre counting function (when the set number of metres of the product reaches the automatic shutdown alarm reminder)
6: Spray glue system air circuit new air circuit heating piece, suitable for high temperature glue spray glue. (Working air pressure 5mpa, glue spraying air pressure 1-2mpa, spray piece using 18 pieces of multi-airway control, using imported nozzles)
7: The melting cylinder is processed by high temperature Teflon and adopts 2 layers of heating. (Ensure the speed of melting glue) Primary filtration before the pump, after the pump by the whole screen filter, reduce the impurities of the glue on the impact of the spray glue.
8: The amount of glue is automatically controlled by PLC, the size of the glue changes automatically with the speed of the host, (the signal is collected through the encoder connected to the host, and the rotary pulse signal is processed by PLC to control the frequency converter. Glue spraying precision error 1g
9: Specific as follows: a: composite carbon spreading machine 1800mm a set, b: hot melt glue machine XD-Z50L 4 sets, c: fibre spray gun 1600mm 4 sets.
10: Spare parts are as follows: 20 small fibre nozzles, 20 glue gun filters, 8 glue machine filters, 4 glue spraying modules 100mm, 1 set of tool box.
